Vaccination chair

The compact injection chair
Vaccination chair

Seat position

Stepless motorized adjustment
Vaccination chair

Comfort position

Stepless motorized adjustment
Vaccination chair

Shock position

Stepless motorized adjustment

Vaccination chair

The compact injection chair for your vaccinate patients

The compact vaccination chair in its specially developed configuration for vaccinations offers price- and performance-oriented comfort in TÜV-tested quality. Stay well equipped for the efficient treatment and safe positioning of your patients due to the infinitely variable motorised adjustment up to the shock position, combined with mobility and stability, even in patients with high body weight. With its integrated paper roll holder, it provides you with a practical hygienic solution for a quick patient turnaround.

The vaccination chair SALSA® A1 is a TÜV SÜD certified therapy chair.

VACCINATION CHAIR

Features
Options
Colours
Technical Data

Features

1 motor for adjustment of seat position

Hand switch A1 with manual locking function

Grey full foam (foamed) armrests, right and left

Armrests rotatable and folding upwards

Individually locking casters ∅ 7,5 cm

Upholstery universal (2- layer foam)

Antimicrobial surface for upholstery

Neck roll in upholstery colour

Paper roll holder

EU-power plug

Safe working load 200 kg

TÜV certified (tuv-sued.com/ps-cert)

2 years guarantee

Options

Wedge-shaped foam armrests of imitation leather incl. hand switch holder, right and left

Low wedge-shaped foam armrests of imitation leather incl. hand switch holder, right and left

Foam armrests of imitation leather incl. hand switch holder, right and left

Armrests rotatable, folding upwards and tiltable

Armrests with additional tilt adjustment

side rail for attachment to the armrest. Available individually, mountable on both outsides.

Footrest manually adjustable

Individually locking casters ∅ 10 cm

Relax pillow in upholstery colour

Lumbar support

Pressure relieving gel seat cushion

Transparent, cleanable protective cover for footrest

Transparent, cleanable protective cover for foot part

Transparent, cleanable protective cover for full foam (foamed) armrests, wedge-shaped armrests and low wedge-shaped armrests

Hand switch holder with Velcro. Made of grey imitation leather and suitable for full-foam armrest pads

Grey holder with Velcro. Made of grey imitation leather and suitable for foam armrest pads

Equipotential bonding cable (absolutely necessary when using "intracardiac procedures")

CH-, GB-, US-power plug - other power plug on request

Only available for new orders

Colours

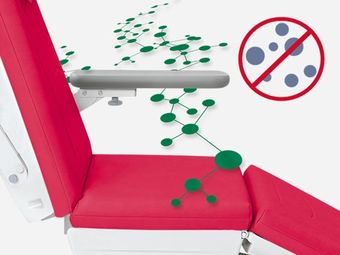

Antimicrobial upholstery

The special antimicrobial imitation leather can reduce the viability or infectiousness of microorganisms, thus offering greater safety for patient and health care personnel.

stone

saffron

raspberry

azure

kiwi

agave

sapphire

On neck roll and relax pillow the colour matches the colour of the upholstery.

Colour standard decor for footrest

grey

Technical Data

Armrest pads length x width x height
full foam armrest pads	60.5 cm x 13.5 cm x 4.5 cm
foam armrest pads	52.5 cm x 15.5 cm x 8.5 cm
low wedge-shaped foam armrest pads	52.5 cm x 15.5 cm x 6.5 – 9.5 cm
high wedge-shaped foam armrest pads	52.5 cm x 16.5 cm x 7.5 – 12.5 cm
Upholstery length x width x height	210 cm x 53,5 cm x 7 cm
Total length (max.) x width	199.5 cm x 80.8 cm
Ground clearance
with casters ∅ 7.5 cm	93 mm
with casters ∅ 10.0 cm	121 mm
Seating height
with casters ∅ 7.5 cm	64 cm
with casters ∅ 10.0 cm	67 cm
Angle of inclination
shoulder area	38° – 84°
loin area	18° – 64°
seat part	4° – 50°
foot part	-29° – 17°
Angle of inclination Shock position
shoulder area	38°
loin area	18°
seat part	50°
foot part	17°
Upholstery material
UV-proof, impermeable to moisture, checked for biocompatibility and toxicity, flame retardant and has a particularly long life with an abrasion resistance of 400,000 cycles by the Martindale test.
Colour metal frame/covers
light grey RAL 7047
Colour full foam armrests
grey
Colour foam armrests
stone, saffron, raspberry, azure, kiwi, agave, sapphire
Colour footrest
light grey RAL 7047
Colour footrest inlay
grey
Casters
individually locking ∅ 7.5 cm
individually locking ∅ 10 cm
Manual adjustment of
footrest
Motorised adjustment of
whole frame
Equipotential bonding terminal
Power rating, primary
100 - 240 V AC, 50/60 Hz
29 V Power rating, secundary
Fuses: internal
Potection type hand control unit: IP X6
Protection type controller: II/IP X 4
Protection class II
Duty cycle: 2 min ON/18 min OFF or 10 % with max. 5 switching cycles per minute
Consumption in standby	< 2 W
EL equipment/EMC: DIN EN 60601-1, 60606-1-2
Spiral power cable 2.0 m – 3.5 m
Permitted air pressure: 800 – 1060 hPa
Ambient temperature: 10° – 40° C
Emission sound pressure level: < 65 dB(A)
Medical device class	I
Applied parts type B (CF limit values in compliance)
Safe working load	200 kg
Weight (without options)	50 kg
2 years guarantee
